Aeronca L Series( LB ) – 1/4 Scale Parts Set by Bates

Description

Scale: 1/4, Wingspan: 108”
Length: 66.25” Wing Area 1350 sq. in.
Weight: 24+- lbs. Power: 20cc – up

The Belair Parts set is laser cut from Jerry's original CAD files and includes wing ribs, aileron ribs, fuselage sides, bulkheads, firewall, formers, fuselage construction jig, fairings, tail saddle, cowl formers, cabin ply, dihedral braces and spars, aileron cores plus many smaller parts, saving you days of tedious cutting. Builders to add stripwood and sheeting.

Here is what the designer, Jerry Bates, says about the model "The model is very scale using Paul Matt drawings as a base plan and then updated using original factory and restoration photos. The cowl is built-up and well detailed on the plans. Plans (not included in parts set - available from Jerry directly) also include a 34-page construction manual with step by step instructions, factory photos, photos of a restoration process. The engine shown is an OS 160T, Ideal for electric power as well."

Cowl = Built-up
Main Gear = Robart #650 RoboStuts

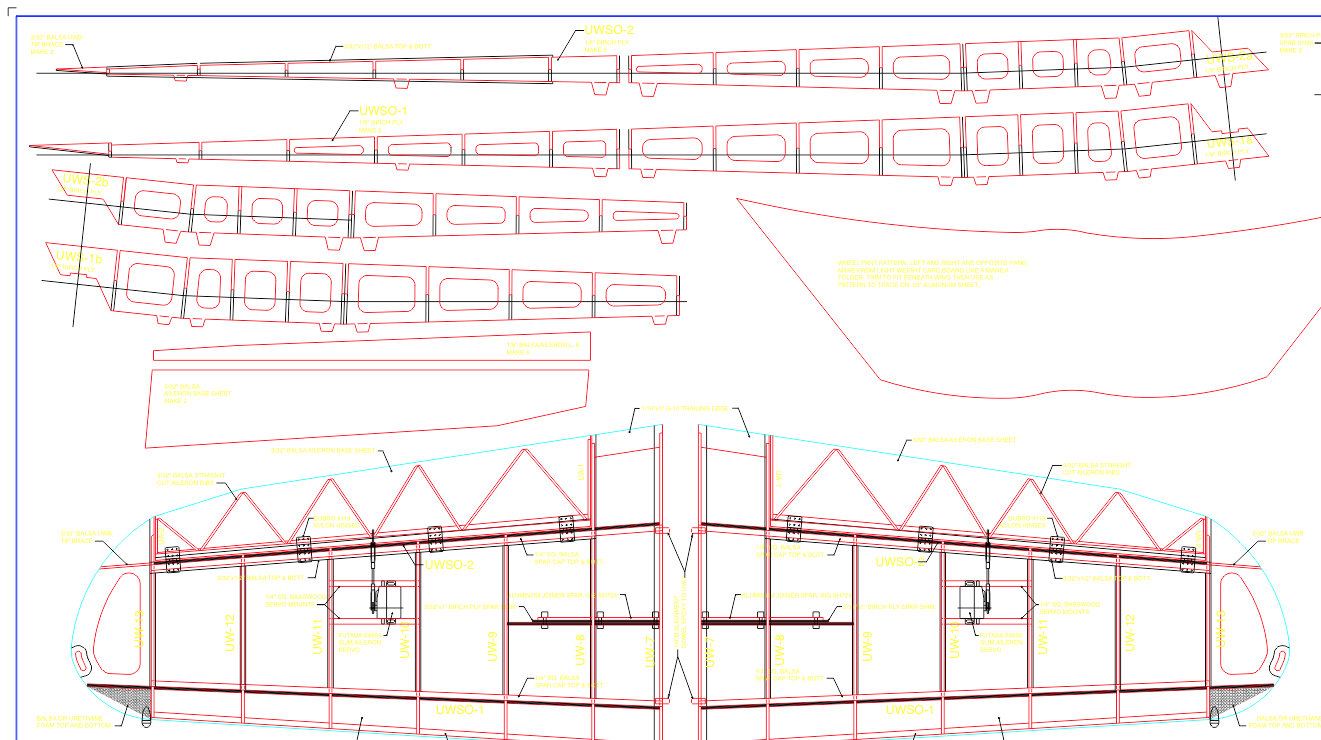

Additonal photos show the detail of the intricate parts - Plans not included.
