Tomboy 72" Parts & Plan Set

Ref: ot-tb72pk

Following good interest in our 120" Tomboy that debuted at Old Warden in July, we are now producing a 72" Tomboy. Based on the original FF plan outlines and profiles, but fully redesigned for RC and the loads that brings.

The fuselage is 3/8" sq balsa and the wing is now a one piece multi-spar design with twin dihedral braces and built up sheet trailing edge.

Suitable for 40 size 4 strokes or electric motors - we used an AXI 4120/14.

What is in the box?

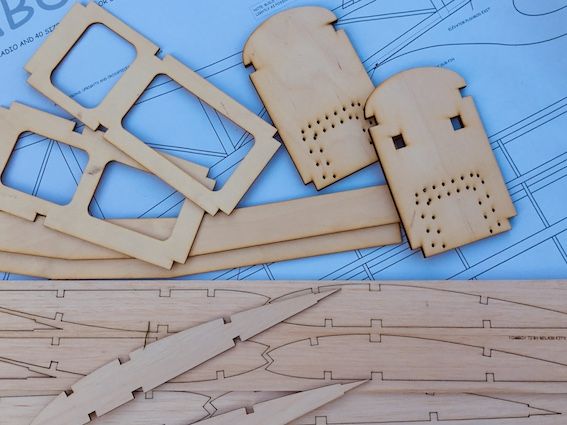

The 72" Tomboy Parts Set includes 26 wing ribs, block wing tips, 14 tailplane ribs, 2 center ribs in 3/16" balsa and tailplane tips, 2 formers in liteply, 2 off 1/4" Birch ply bulkheads - one ic and one electric, plus an electric mount/battery box, landing gear plate, 2 dihedral braces in Birch ply, shaped fin components and rudder - 3/8" balsa, various gussets, 'instrument panel' and cabin/wing seats, plywood RC tray with cut-outs, plus 1/4" shaped infill sheeting for fuselage sides, tail plane mounts and also a 1/4" balsa sub-fin and strengthener. Also included are cowl cheeks laminated and 2 off 1/16" plywood cowl cheek doublers, rudder horn for closed loop.

Specifications: Wingspan: 72", weight 6-8lbs, our model is covered in Solartex and uses Savox standard servos and an AXI 4120, Castle Creations 70A ESC and Thunderpower 65C 3 cell Lipo 1800mAh battery for around 10 minutes constant power.

Price: 130.00 Inc VAT
149.50 USD | 127.40 EUR
